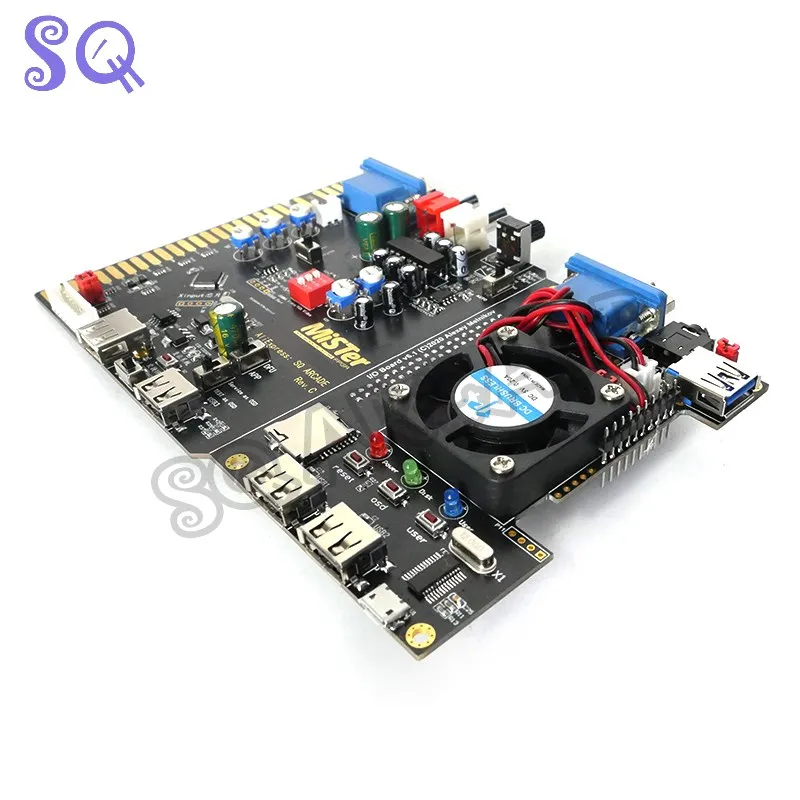

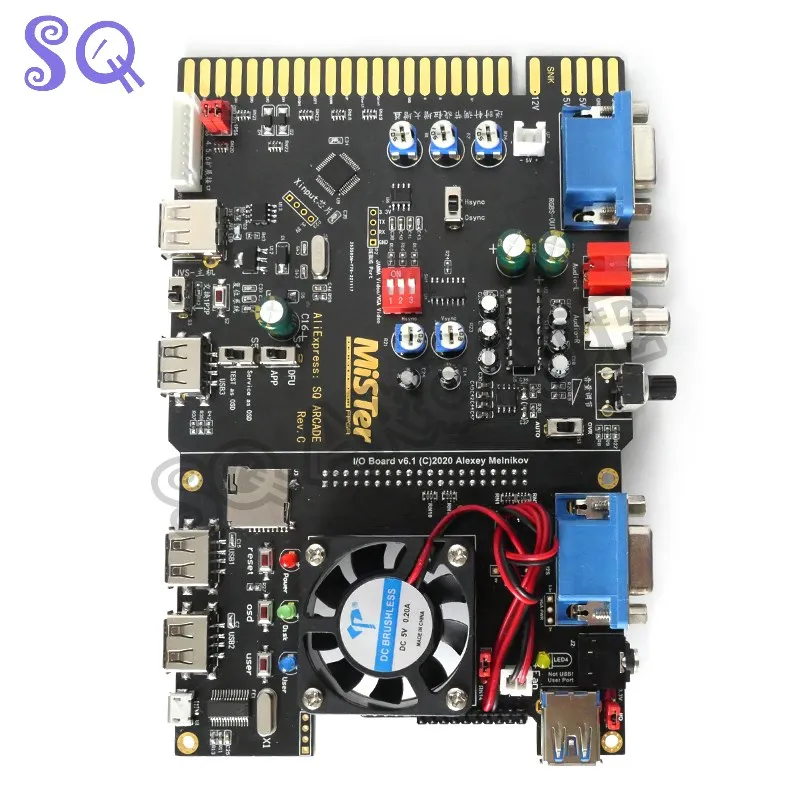

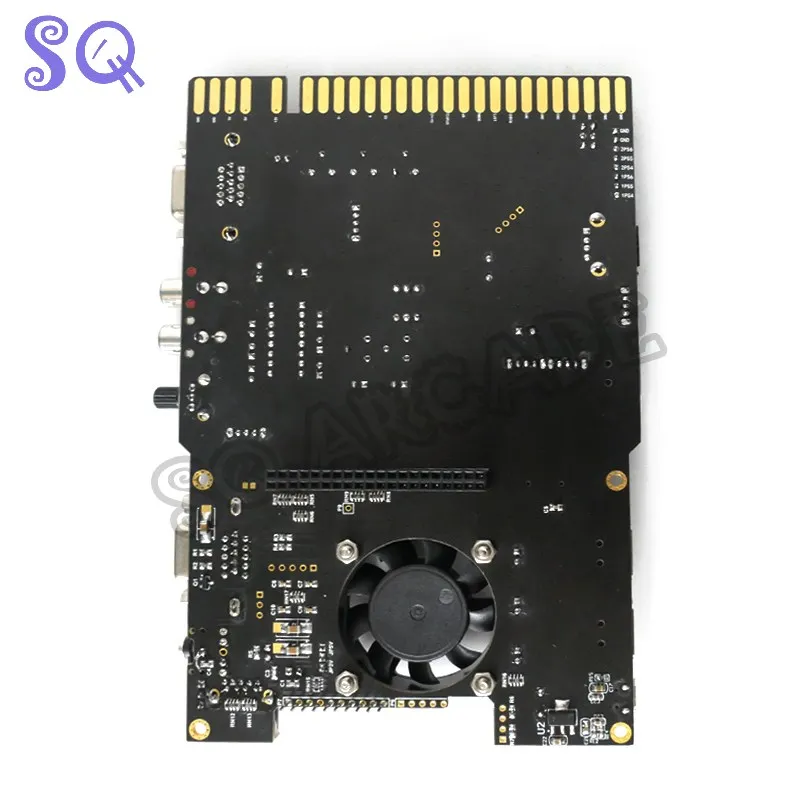

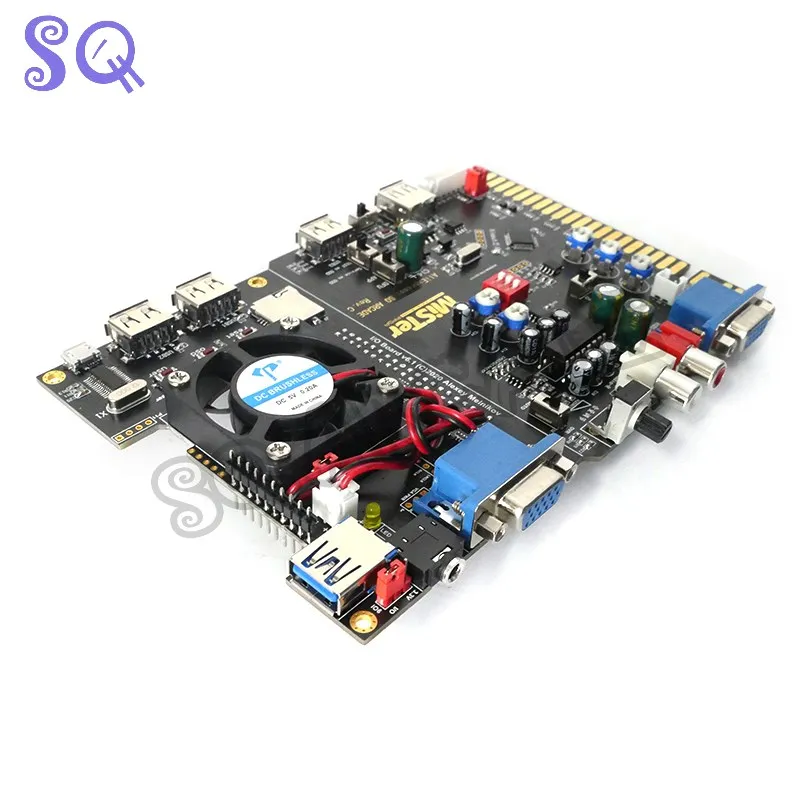

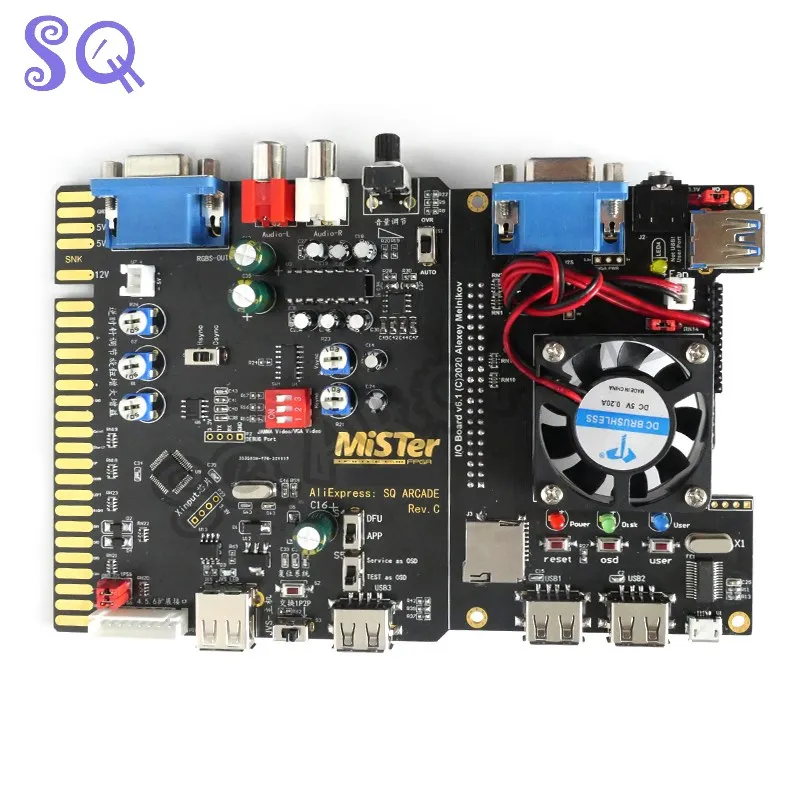

Adaptateur MiSTer FPGA Vers JAMMA/JVS

Voir le prix

UGS : 14:29#MiSTer to JAMMA_1745d0d3accceeb7 Catégorie :

Description

product description:

MiSTer FPGA MiSTer to JVS/JAMMA TO USB

One card compatible with JVS/JAMMA frame to connect MiSTer.

Support MiSTer FPGA access to all JVS arcade frames:

Support Sega nc,nnc.

Support vewlix.

Support all arcade machines controlled by jvs io, such as SEGA, NAMCO, TAITO, etc.

At the same time, all arcade machines with JAMMA interface are also supported to be transferred to MiSTer, and the video gain can be adjusted.

Mode 1: JAMMA/JVS is connected to two Xinput controllers and recognized by MiSTer.

Mode 2: In conjunction with the SNAC DB15 expansion board, JAMMA is transferred to the SNAC DB15 to directly control the FPGA game core, with zero delay, exactly the same as the base board, and provides RBF core firmware that supports DB15 mode and MiSTer main program that supports setting DB15 mode.

Lead out 4.5.6 key extension interface of 1p2p.

JVS protocol decoding and Xinput handle are implemented using 32-bit processor high-performance chips.

Add integrated SNAC DB15 mode directly into the FPGA game core, zero latency, exactly the same as the substrate.

The following functions can be completed, sweeping all arcade machines of JVS/JAMMA:

DB15 schema:

JAMMA to SNAC DB15

USB mode:

JAMMA to USB Xinput

JVS to USB Xinput

Informations complémentaires

Color

MiSTer to JAMMA
